Ringtone's Main Interface
　 　 　
Main Interface

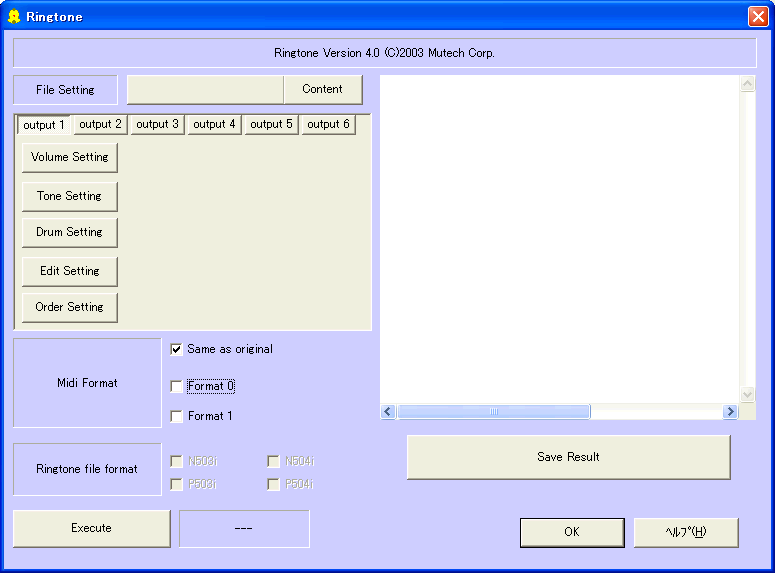

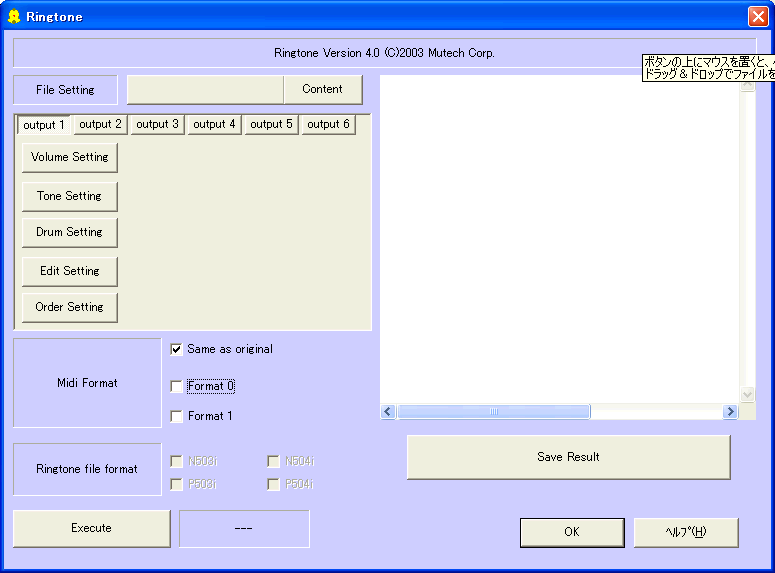

When you start Ringtone, you will see the window below.




*Click the button of settings you wish to activate in Ringtone. You will see [Volume Setting], [Tone Setting], [Drum Setting}, [Edit Setting], [Order Setting] on the interface. If you click these button one by one, a button to specify file name and another button to check the content of the setting will be displayed on the right side of each setting button you have just clicked

*You can specify a file or files that you wish to perform settings by dragging and dropping the file or files.

*[Check] button will display list of contents.

　
How to Use
　



(1)This button specifies CSV file that has a list of files you will convert. The name of CSV file that you have specified will be displayed on this button.

(2)This button opens the dialog box that will show you the content of the CSV file you have specified in (1). This button lets you check the list of files you are going to convert. When the list will not be shown even if you have clicked this button, you need to register OCX on to your Windows.
(3)This button specifies CSV file that has information on settings such as Volume, Velocity, Pan and Gate Time. The name of CSV file that you have specified will be displayed on this button.
(4)This button opens the dialog box that will show you the content of the CSV file you have specified in (3). This button will lets you check the settings of volume, velocity, panpot, gate time, etc. When the list will not be shown even if you have clicked this button, you need to register OCX on to your Windows.
(5)This button specifies CSV file that has information on settings of tones. The name of CSV file that you have specified will be displayed on this button.
(6)This button opens the dialog box that will show you the content of the CSV file you have specified in (5). This button will lets you check the settings of tones. When the list will not be shown even if you have clicked this button, you need to register OCX on to your Windows.
(7)This button specifies CSV file that has information on settings of drum. The name of CSV file that you have specified will be displayed on this button.
(8)This button opens the dialog box that will show you the content of the CSV file you have specified in (7). This button lets you check the settings of drums. When the list will not be shown even if you have clicked this button, you need to register OCX on to your Windows.
(9)This button specifies CSV file that has information on settings of editing. The name of CSV file that you have specified will be displayed on this button.
(10)This button opens the dialog box that will show you the content of the CSV file you have specified in (9). This button lets you check the settings of editing. When the list will not be shown even if you have clicked this button, you need to register OCX on to your Windows.
(11)This button specifies CSV file that has information on settings of message orders. The name of CSV file that you have specified will be displayed on this button.
(12)This button opens the dialog box that will show you the content of the CSV file you have specified in (11). This button will lets you check the settings of message orders. When the list will not be shown even if you have clicked this button, you need to register OCX on to your Windows.
(13)This button allows you to set operation such as copying channels.
(14)This button specifies output format of the files.
(15)This button starts running the operation.  This button loads the files listed and run the operation you have specified and output a file.
(16)This panel shows you the current file that is on the process.
(17)This button closes Ringtone.
(18)This button displays this help.
