[Knowledge Base] Dialog Box
　 [ Knowledge Base ] dialog box is used for assembling the chord progression of the selected music style. 　
Usage of [Knowledge Base] Dialog Box

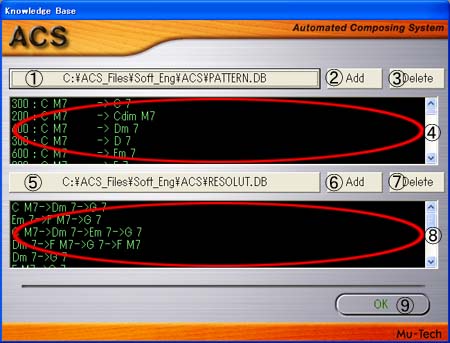

[Knowledge Base] dialog box is displayed when you select [Knowledge Base] from the [Chord Generation] combo box in the [Chord Progression] dialog box. Followings are the buttons you will use in this dialog box.

Chord progression is generated by knowledge base. ACS uses two type of knowledge base. One is for theme part. Other is for bridge and verse.



(1) [Knowledge Base for theme] button Specifies a knowledge base file for creating a chord progression of theme part. Opens [ Open File] dialog box.
Knowledge base file is a text file that contains set of provability between two chords.
For example, "300:C M7 -> G7" means motion from CM7 to G7 occurred with provability value 300. If provability value is large, it occurs often.
The order of lines in the Knowledge base does not affect the result. Only number of provability value affects how often it occurs.
To know more, click here.
(2) [ Add ] button Adds a pattern of chord progression to the knowledge base.
Opens [Chord Addition] dialog box.
(3) [Delete] button Deletes the pattern of chord progression from the knowledge base.
(4) [ Chord Progression ] list box   Displays the list of chord progressions contained in the knowledge base.
(5) [ Knowledge Base for Bridge ] button Specifies a knowledge base file for creating bridge.Opens [ Open File] dialog box.
Knowledge base file is a text file that contains some chord progression.
For example, CM7->Dm7->G7 means the knowledge base includes chord progression patterns that begins CM7 and moves to Dm7 and moves to G7. A knowledge base might include some chord progression patterns and patterns have the same provability.
(6) [ Add ] button Adds a pattern of chord progression to the knowledge base.
Opens [ Resolution Pattern] dialog box.
(7) [Delete] button Deletes the pattern of chord progression from the knowledge base.
(8) [ Chord Progression ] list box Displays the list of chord progressions contained in the knowledge base.
(9) [OK] button Closes [ Knowledge Base] dialog box.
